DIODE DYNAMICS · TOYOTA 4RUNNER
See behind the 4Runner, beyond the factory lamps

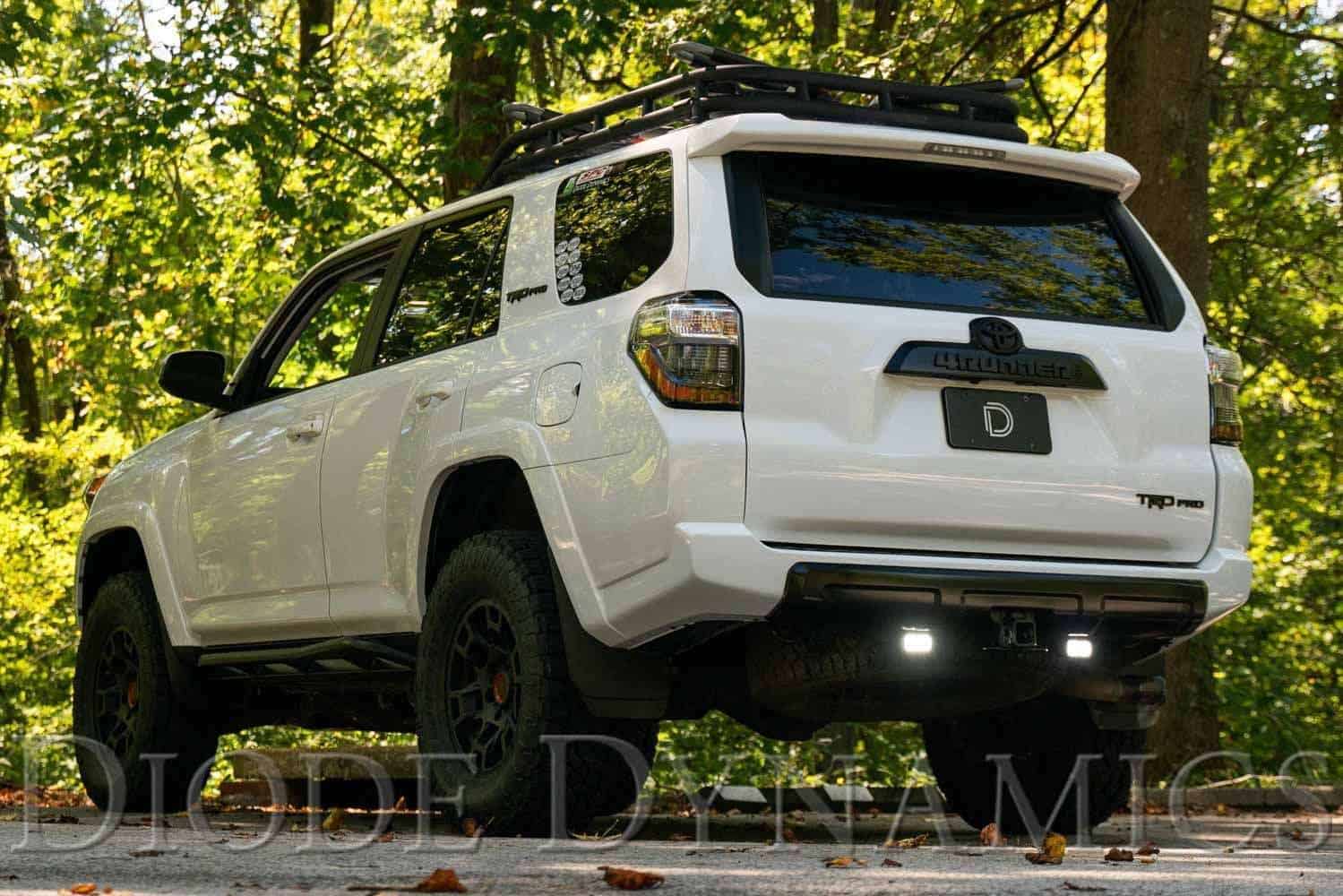

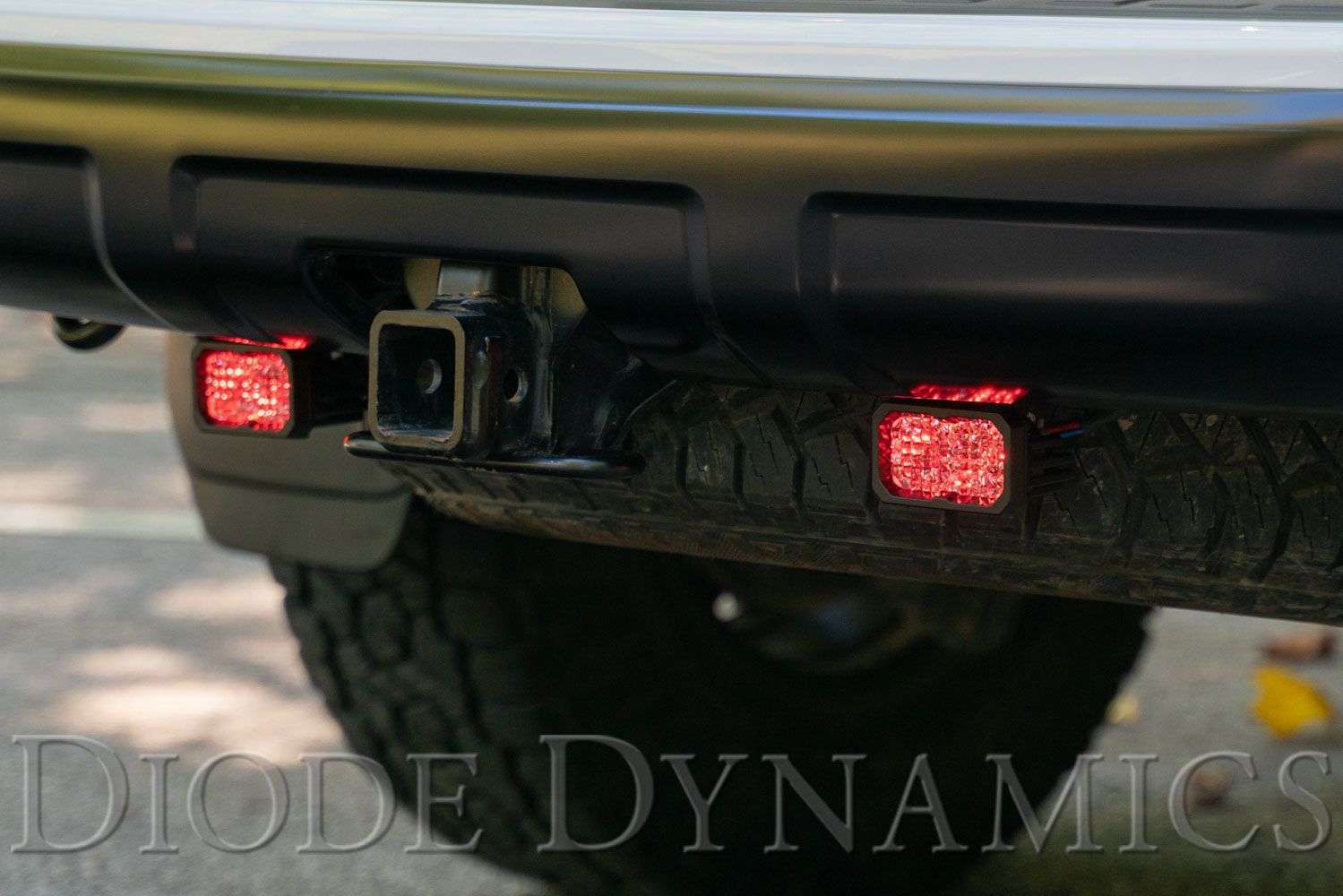

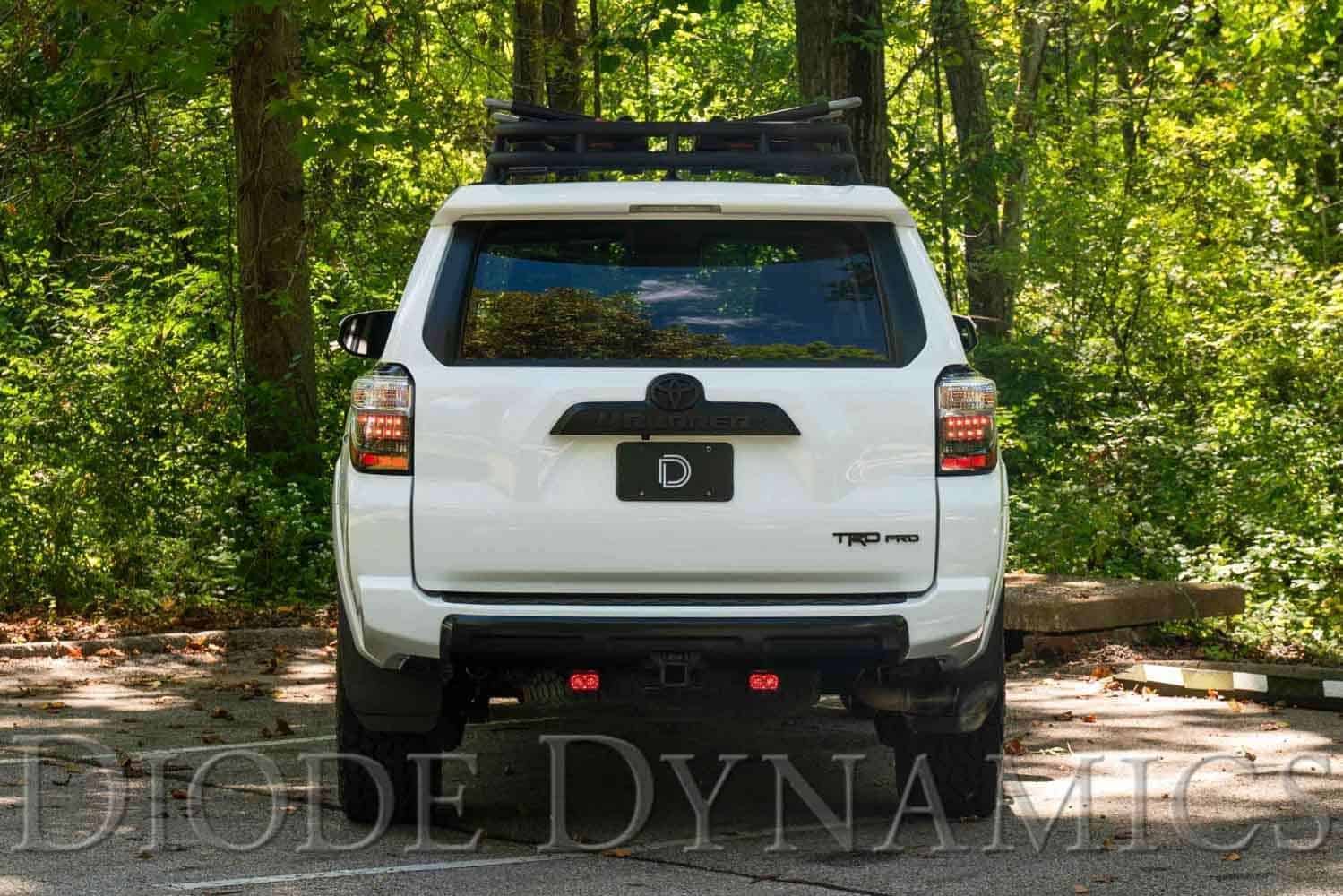

A pair of white Flood pods mounts beneath the rear bumper, with automatic reverse operation, a manual override option and red backlighting.
Check your year and equipment
2010–2024 Toyota 4Runner. The under-bumper kit uses factory mounting locations and a vehicle-specific taillight adapter. An optional cabin override switch requires a suitable firewall route and a 19 mm mounting hole.

Choose C1 or C2 2.0
| Family | Selection |
|---|---|
| C1 Sport / Pro | Compact one-inch lamp family with Flood output. |
| C2 2.0 Sport / Pro | Larger current two-inch rectangular lamp family with Flood output. |

Automatic reverse, manual override or off
The vehicle adapter supplies the reverse signal. The universal harness supplies fused battery power. The switch selects automatic reverse operation, manual override or off.
Leave the switch in the automatic position in the engine bay if you do not need cabin override. A cabin-mounted switch requires routing through the firewall and a 19 mm mounting hole; do not assume every installation is drill-free.

What is included?
- Two selected white Flood pods and their mounting brackets.
- DD4102 universal wiring harness and the DD7163 vehicle-specific adapter.
- Mounting hardware, zip ties and the listed electrical connection parts.

Available configurations
| SKU | Configuration |
|---|---|
| DD7164 | 1″ Sport |
| DD7165 | 1″ Pro |
| DD7166 | 2″ C2 2.0 Sport |
| DD7167 | 2″ C2 2.0 Pro |
Warranty by component
Diode Dynamics provides a limited lifetime warranty on eligible current Stage Series lamp assemblies and eligible off-road brackets under its published terms. Commercial or fleet lamp use is limited to eight years. Wiring harnesses and other accessories have separate three-year coverage; the entire kit does not receive one blanket lifetime term.
Manufacturer video
How to Install Stage Series Reverse Light Kit for 2010-2024 Toyota 4Runner | Diode Dynamics. Video loads only when selected.
Installation, illustrated
Open the 2010–2024 Toyota 4Runner reverse-light installation guide
Review the mounting, wiring and aiming steps before starting. The guide includes the original manufacturer technical photos and diagrams.
Questions before ordering
Do I need to buy DD7163 separately?
No. The complete 4Runner reverse kit already includes the vehicle-specific DD7163 adapter. The separate harness page is for a replacement or a compatible build that lacks it.
Is the factory mounting bolt reused?
No. The original bolt beside the spare tyre is removed; the manufacturer procedure uses the supplied M6 bolt and oversized washer.
Can I drive forward with the white rear lights on?
The override is for appropriate stationary or off-road use. Keep rear-facing white auxiliary light off when it could dazzle other road users.
Plan the rest of your 4Runner lighting
Plan your 4Runner lighting
Compare this part with other supported applications and confirm original equipment before ordering.
Shop 2014–2024 4Runner lighting · Read the 4Runner buying guide
