Jeep JL · SS5 lighting

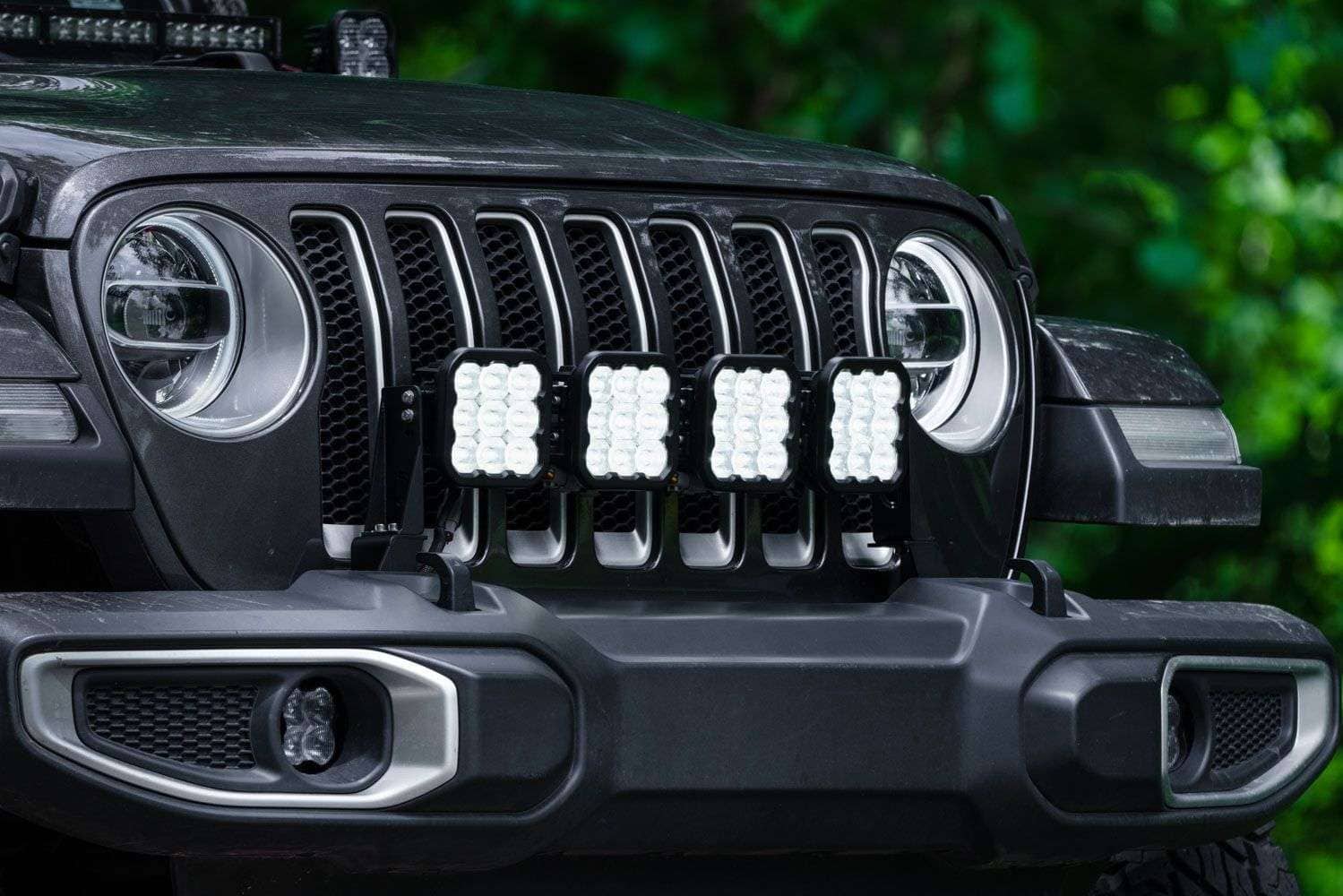

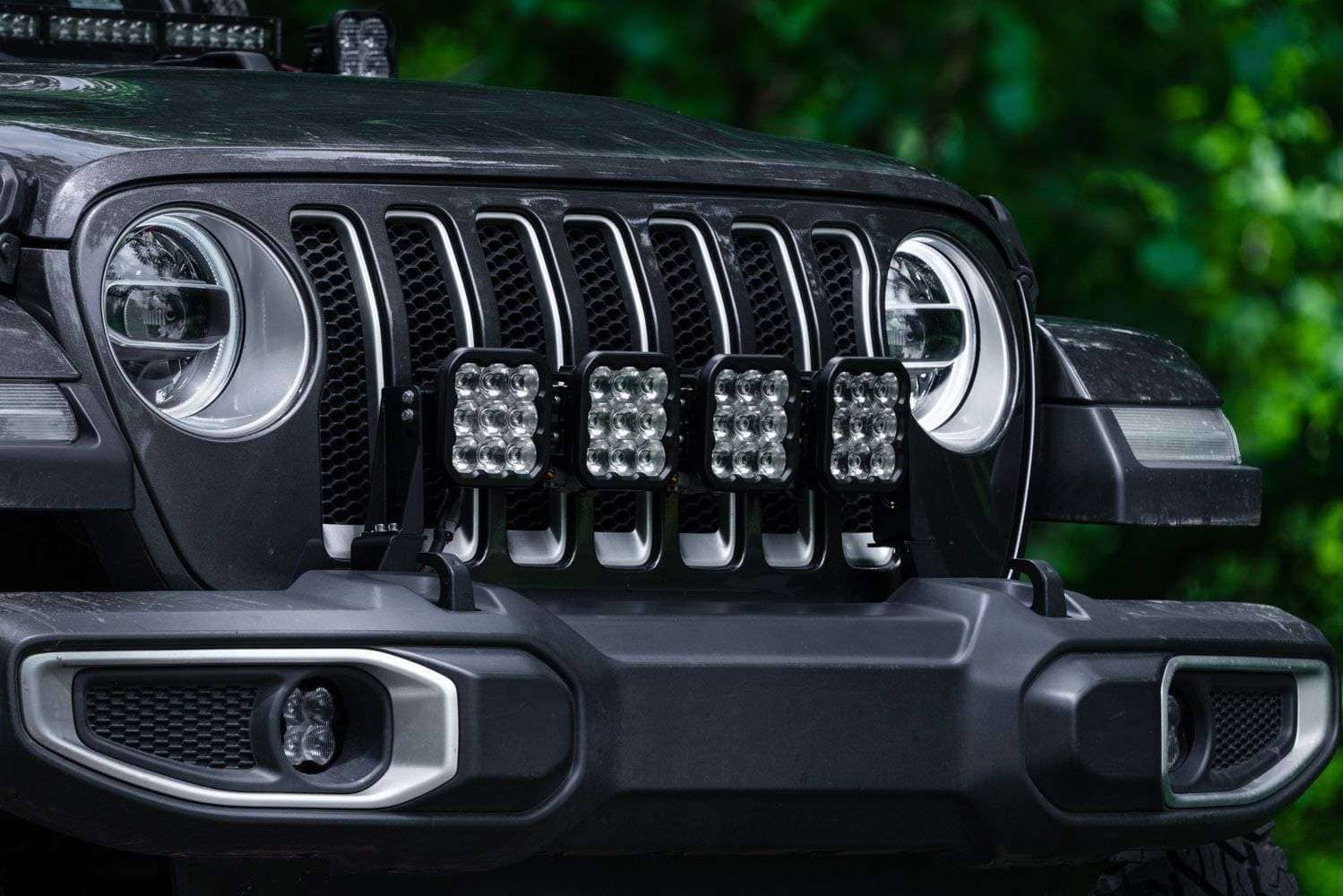

Four linked SS5 pods across the JL grille
Choose a four-pod Sport or Pro Combo kit in White or Yellow, or choose the mounting brackets without lamps.
Identify the JL and check clearances
For 2018–2026 Jeep Wrangler JL. A 2018 Wrangler can be JK or JL; confirm the generation. Check aftermarket bumper, winch, fairlead and accessory clearance against the mounting diagram before ordering. Installation photos may show other lights that are not included.
Installation requires drilling: enlarge the existing frame-rail holes to 10 mm (25/64 inch) and fit M6 rivnuts. Review the mounting and winch-clearance diagram before ordering.

Complete kits and brackets have different contents
| SKU | Package / power | Colour | Contents |
|---|---|---|---|
| DD6826 | Sport | White | 4 Combo pods |
| DD6827 | Sport | Yellow | 4 Combo pods |
| DD7268 | Pro | White | 4 Combo pods |
| DD7269 | Pro | Yellow | 4 Combo pods |
| DD6825P | Bracket Only | N/A | No lamps or harness |
Choose N/A with Bracket Only. Sport uses 40 W per pod; Pro uses 90 W per pod.
White-lens kits produce a 6000K main beam and allow eight selectable backlight colours. Yellow-lens kits produce a 3000K main beam and Amber backlight only. Backlight programming changes the accent, not the main-beam colour. Use these auxiliary lights only where permitted.
What the complete kit includes
Four SS5 pods, three CrossLinks, end mounts, four-pod connecting harness, vehicle brackets, mounting hardware and fused power wiring. The exact selected SKU determines the supplied harness.

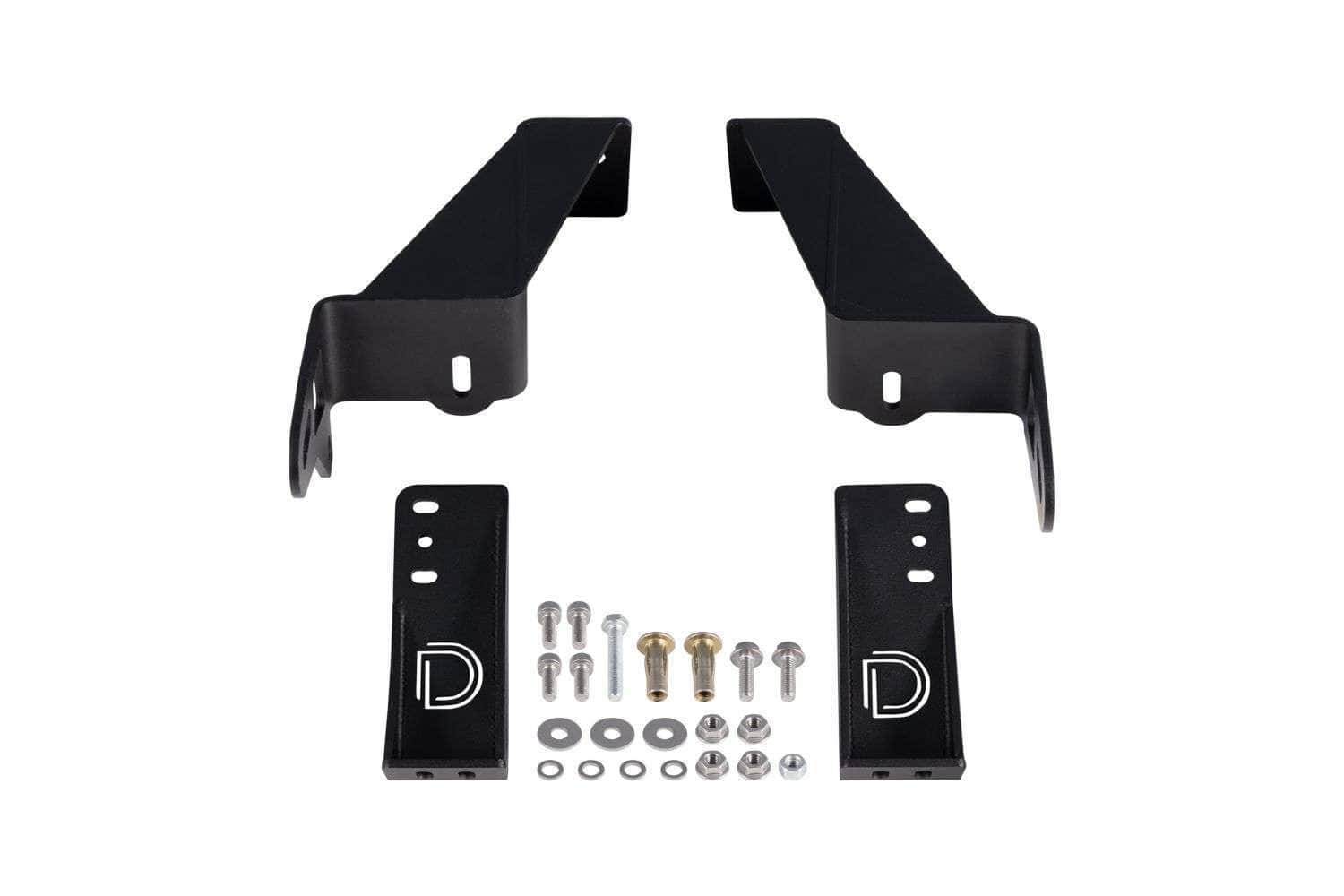

Bracket Only contains the vehicle mounting package without lamps or power wiring. Other lights visible on the vehicle are separate.

Mount, connect and adjust
Open the illustrated JL bumper and grille installation guide
The factory AUX-switch connection uses separate main-beam and backlight controls. A vehicle without that switch bank uses the supplied toggle-switch branch. Keep the main power connection fused and follow the supplied harness. Use the SS5 CrossLink assembly, wiring and backlight guide for the shared link assembly and backlight procedure.
Manufacturer vehicle-specific demonstration; use the matching kit branch.
General CrossLink demonstration; the vehicle kit contains the pod count listed above.
Warranty
Diode Dynamics lists a limited lifetime warranty for the SS5 pods and eligible off-road mounting brackets. Wiring and other accessories carry separate terms; commercial, industrial and fleet use is limited to eight years. Read the manufacturer warranty
Plan the rest of your Wrangler lighting
Plan your Wrangler lighting
Compare complete kits, mounting parts and installation guides for your generation. Check each product’s original-equipment and trim requirements.
Compare Jeep Wrangler JK and JL lighting · Read the Wrangler lighting upgrade guide
